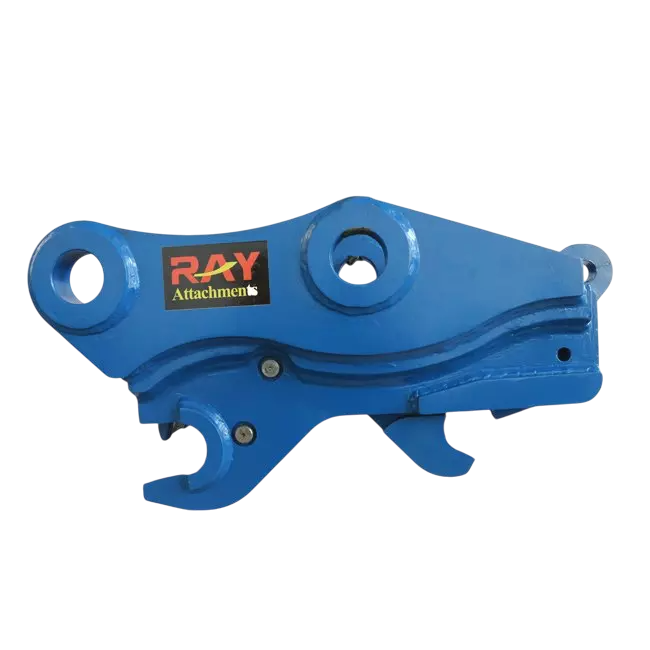

RAY-RQH02M

Specifications

• Suitable carrier excavator weight: 2.5‑4 tonnes.

• Pin diameter: 40 mm / 45 mm.

• Pin‑centre (C‑to‐C) distance (lower pins): 185‑220 mm.

• Arm width (dipper/C‑frame width): 125‑140 mm.

• Hydraulic oil pressure (if hydraulic or dual‑lock type): 40‑248 bar.

• Oil flow (if hydraulics): 10‑20 L/min.

• Unit weight: approx. 47 kg.

• Length / size (approx): Length ~ 570 mm; Width ~ 280 mm; Height ~ 305 mm.
